Accurate, high performance sound.

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles.They feature edge-driven textile tweeters for smooth, clear highs and the larger models offeran adjustable tweeter output level control for high-frequency optimization based on installationlocation or the listener’s preference. Oversized Plus One™ woofers offer more surface area forhigher bass output and enhanced midrange performance. Plus our newly engineered basketsare optimized to fit most factory speaker locations.

Features and Benefits

Edge-driven, textile tweeters

The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable tweeter output level

The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference.

Plus One™ woofer cone architecture

Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class – the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size

Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive pricing

Reference speakers provide step-up Infinity sound at mainstream prices

Description 4" (100mm) coaxial car speaker

Power Handling 35W RMS, 105W peak

Sensitivity (@ 2.83V) 92dB

Frequency Response 75Hz – 21kHz

Impedance 3.0 ohms

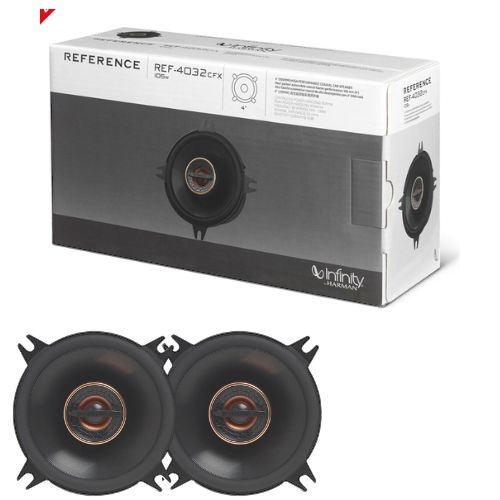

What's In The Box?

• 1 x Pair of coaxial speakers
• 1 x Foam mounting tape
• 1 x Owner’s manual
